WiFi Smart Water Level Sensor | Ultrasonic Tank Monitor & Alarm

Description

Stop Guessing, Start Monitoring: The WiFi Smart Water Level Sensor

If you have ever climbed a slippery rooftop ladder in the dark to peer into an overhead tank, or come home to a flooded utility room because a float valve jammed, you already understand the problem this device solves. Managing water tanks in Pakistani homes has always been a mix of guesswork and last-minute panic. Mechanical float switches rust and stick, visual inspection is both inconvenient and dangerous, and running a water pump blind is one of the fastest ways to burn out a motor. At eGalaxy, we stock smart home solutions that remove that guesswork entirely — and the WiFi Smart Water Level Sensor (Model 872WT) is one of the most practical devices in our Home Automation range.

This is not a basic float gauge wired to a buzzer. It is a fully connected, app-controlled monitoring station that feeds live data to your smartphone, automates your pump cycles, and alerts you the instant anything goes wrong — without you ever needing to physically interact with the tank.

Why Ultrasonic? Zero Contact, Zero Degradation

Traditional water level monitors rely on metallic probes or mechanical floats that sit inside the tank and touch the liquid. Minerals, rust, algae, and chemical residue slowly degrade those parts until readings become unreliable or the sensor fails entirely.

The WiFi Smart Water Level Detector uses non-contact ultrasonic ranging — the same core measurement principle described in the ultrasonic transducer technology that powers industrial-grade liquid level instruments. The sensor mounts at the top of your tank and emits high-frequency sound pulses downward. Those pulses bounce off the liquid surface and return to the unit. By measuring the travel time, the device calculates the exact water height to within ±1.0% to ±2.0% accuracy. Because nothing ever touches the water, there is nothing to corrode, nothing to clean, and no mechanical part to jam or fail. It works equally well with clean drinking water, harvested rainwater, and stored fuel oil.

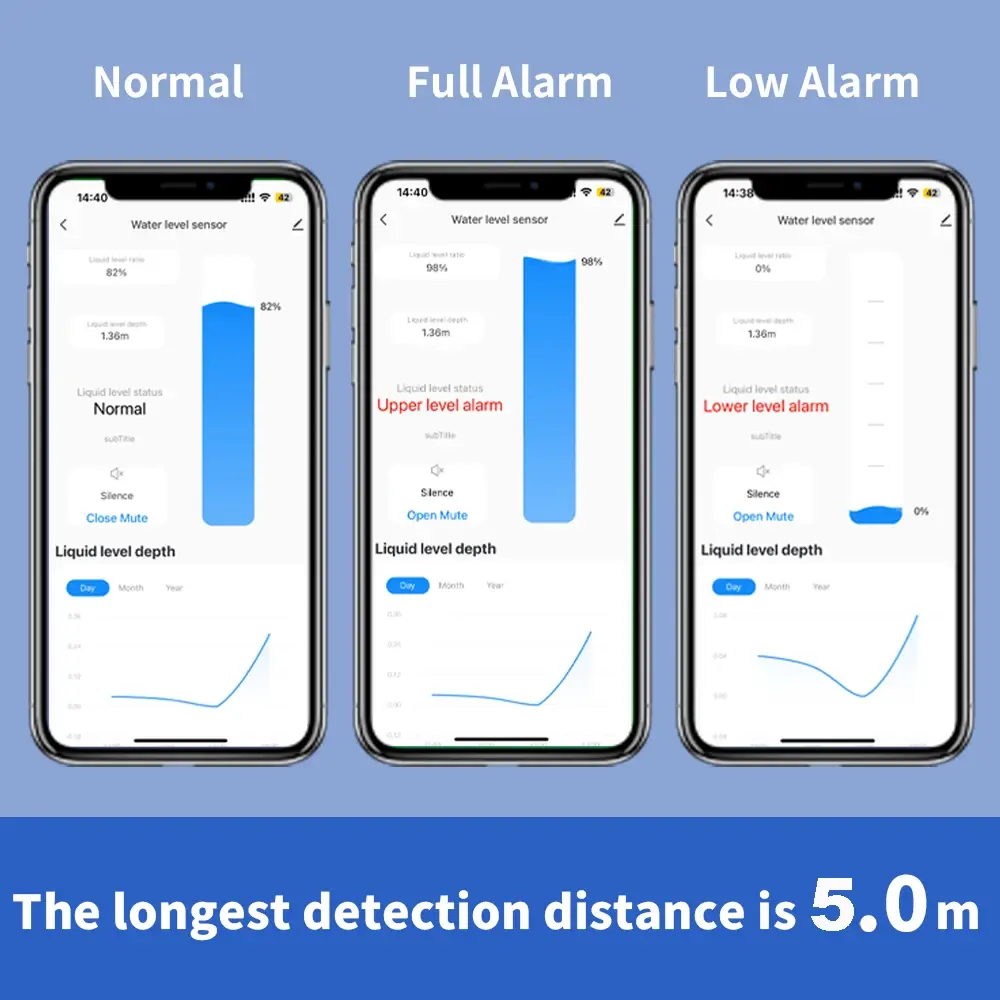

Real-Time App Control from Anywhere in Pakistan

Once installed and paired with the free Tuya Smart or Smart Life app over a standard 2.4GHz Wi-Fi connection, the device streams live tank percentage data directly to your phone — no subscription fees, no separate hub required. You can check your tank from the couch, from the office, or from a different city entirely.

Within the app, you set your own alert thresholds. If the water level drops below 20%, you receive a push notification. If it rises above 90% and the inlet is still open, you are notified before overflow happens. This is particularly useful during the summer months in Lahore and Karachi when water supply schedules are unpredictable and daily tank management is a constant concern.

This WiFi Smart Water Level Sensor pairs naturally with other devices in our Smart Home Devices range. For example, pairing it with one of our Smart Plugs and setting a Tuya automation rule lets you create a fully hands-free pump cycle: the sensor detects a low level and automatically switches the pump on; once it detects the tank is full, it cuts the power. No manual intervention needed.

Dual Alarm Defense: On-Site and On-Screen

When a critical water level is reached, this sensor does not rely on your phone alone. The unit’s built-in buzzer and LED alarm activates immediately on-site, alerting anyone in the vicinity — in the garden, the garage, or the utility room — that action is needed. At the same time, a push notification hits your Tuya app. This two-layer alerting system means that even if your phone is on silent or you are away from home, the audible alarm ensures that family members nearby can respond.

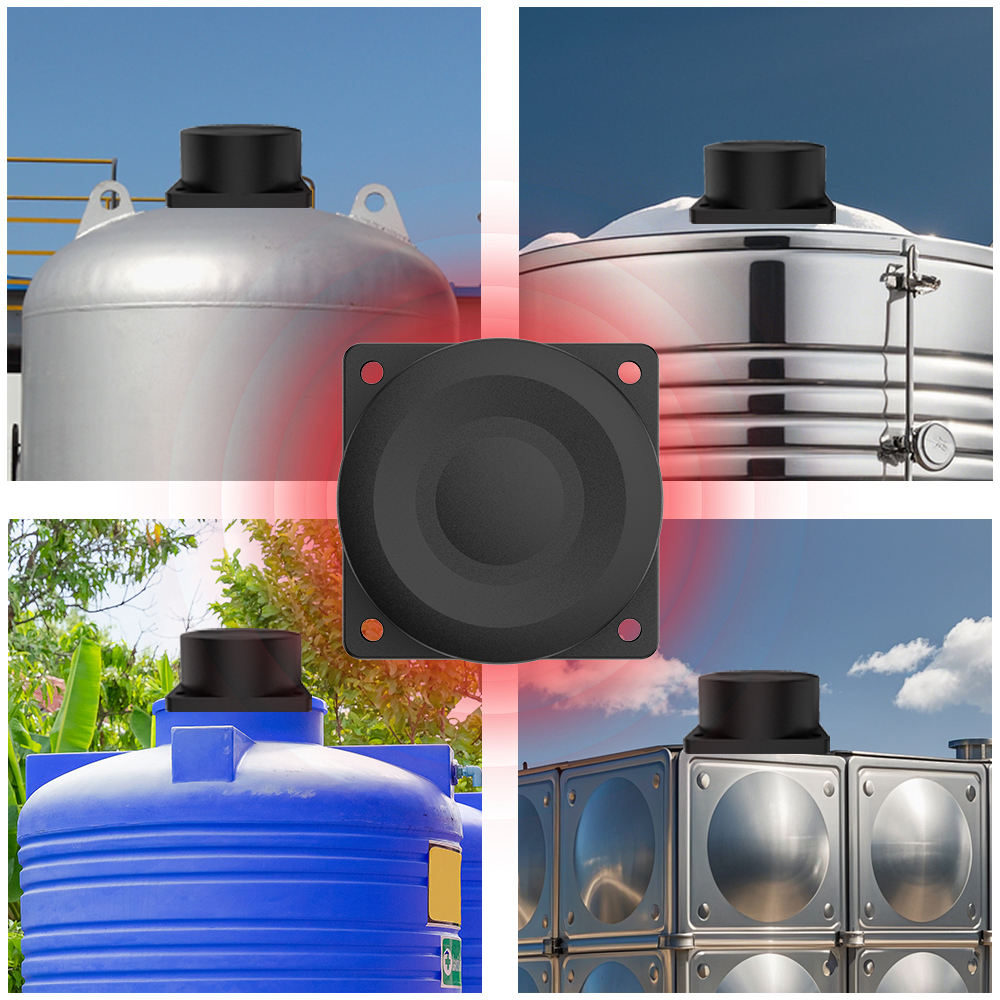

Built for Rooftops, Basements, and Outdoor Tanks

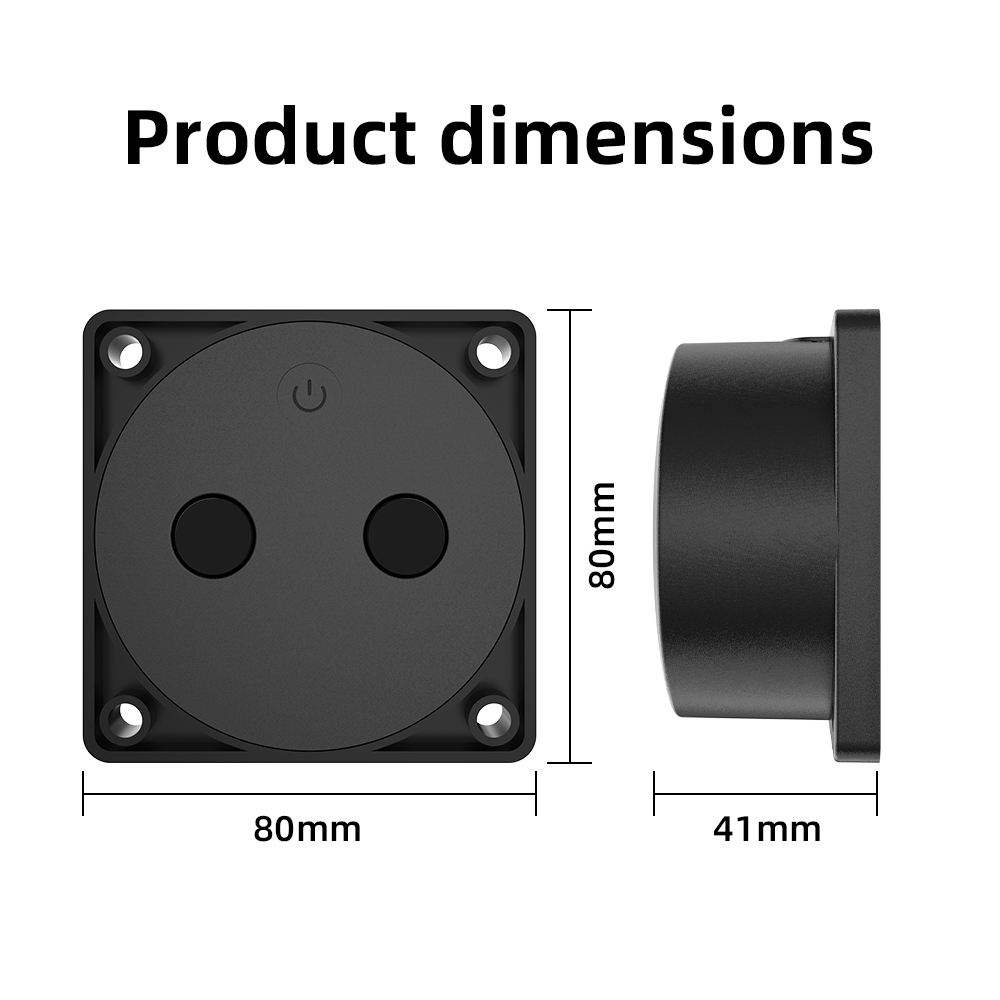

Liquid tanks are rarely in comfortable, climate-controlled environments. They sit on blazing concrete rooftops in 45°C July heat, inside waterlogged basements, and in dusty open-air utility enclosures. The WiFi Smart Water Level Detector is rated IP65 — meaning the housing is completely sealed against dust ingress and resistant to low-pressure water jets from any direction. Its compact 60mm × 40mm × 20mm ABS enclosure is flame-retardant and impact-resistant, and the operating temperature range of -20°C to +70°C means it handles both freezing winter nights in northern Pakistan and peak summer heat without failure.

Voice Control with Alexa and Google Assistant

Full compatibility with Amazon Alexa and Google Assistant means you can simply ask, “Alexa, what is the water level in my main tank?” and get an immediate verbal response without touching your phone. For households that have already set up a voice assistant ecosystem, this WiFi Smart Water Level Sensor makes the device feel like a completely natural part of daily home management rather than another gadget to manage separately.

Energy-Efficient and Simple to Install

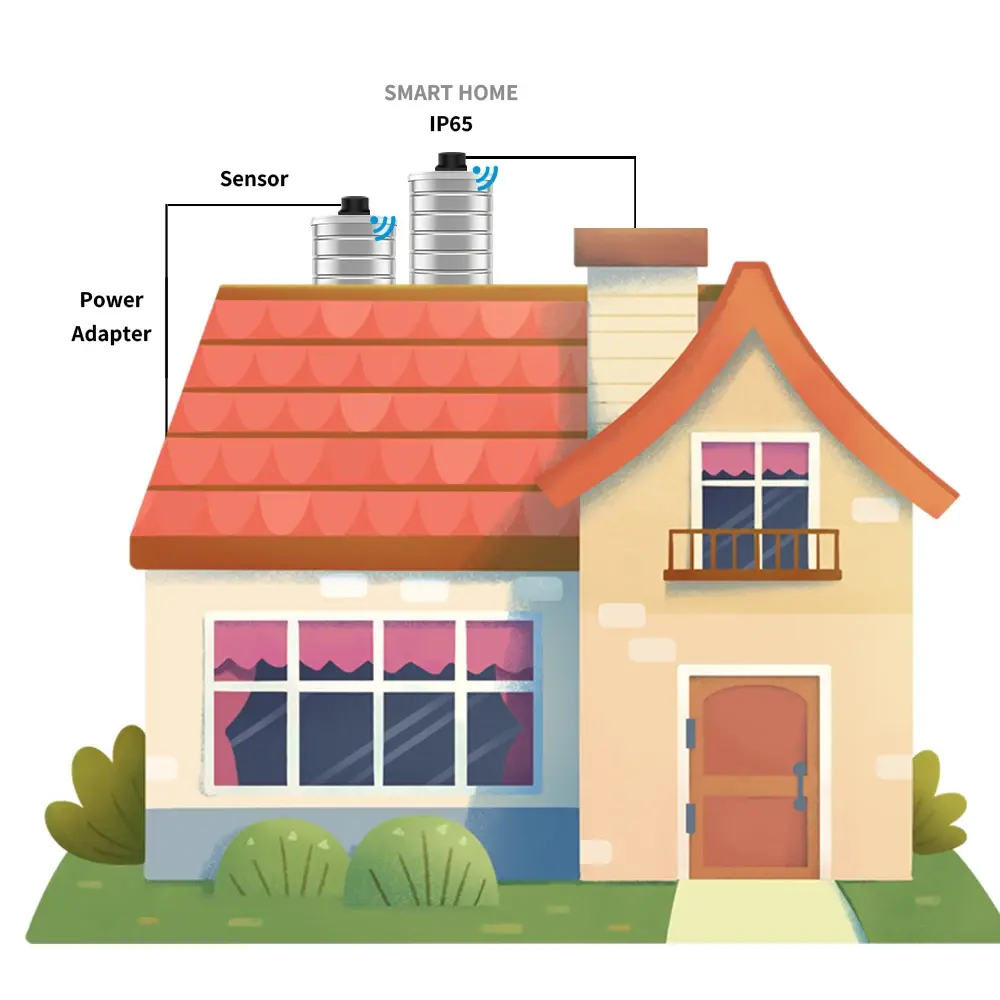

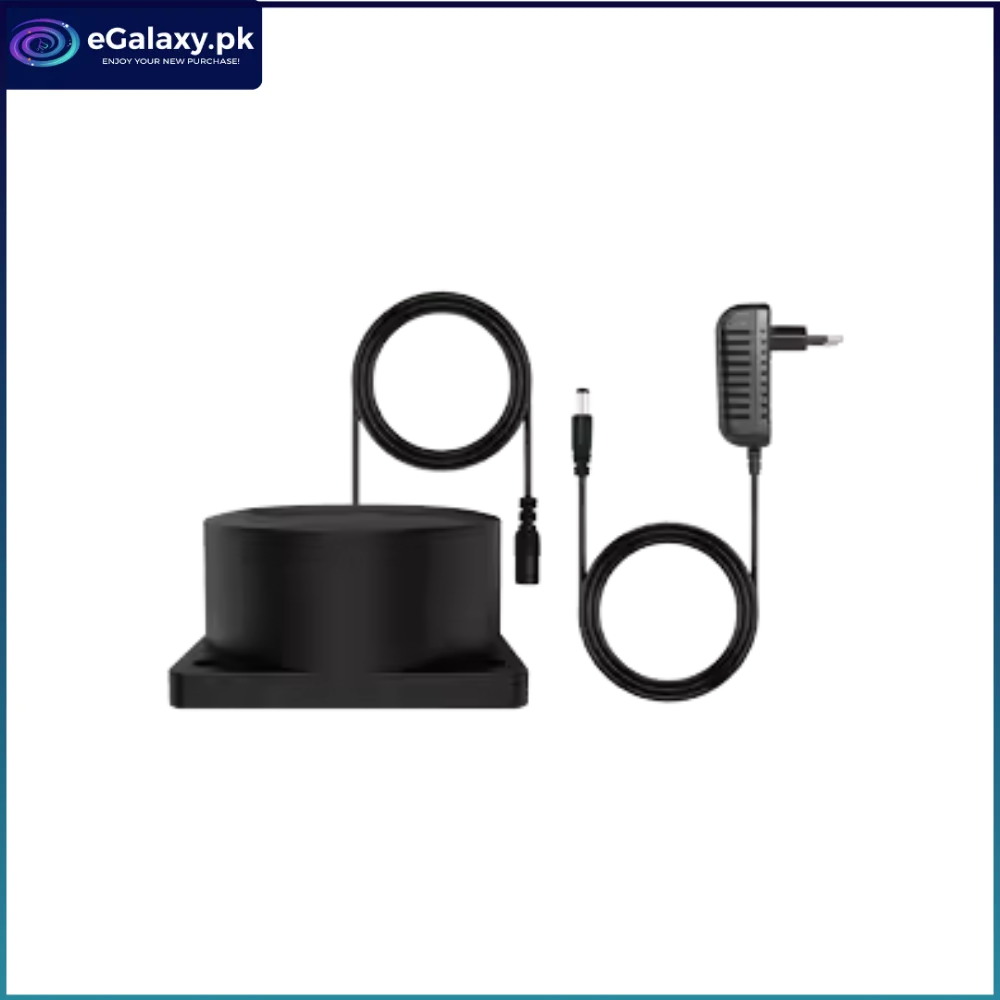

The unit draws only 0.5W at a working current of ≤100mA, running 24/7 on a power draw that is essentially invisible on your electricity bill. Power is supplied via a standard DC 5V/1A adapter. Installation involves mounting the sensor at the top of the tank, running the cable to a nearby adapter, and completing the Tuya app pairing process in a few minutes.

If you want to build a more complete smart home monitoring setup, browse the full Home Automation category, check our Watt Meter range to monitor pump energy consumption, or reach out through our Contact page if you need installation guidance before ordering.

Technical Specifications
