63A DC Smart Breaker (8-90V) | Timers, Countdown Scheduling & Relay Memory

Description

Automate Your DC Circuits the Smart Way — TOMZN DC Smart Breaker | eGalaxy.pk

Pakistan’s energy landscape is changing fast. From rooftop solar panels in Lahore to off-grid battery systems in rural Punjab, more Pakistanis than ever are running serious DC power setups. But managing those systems manually — switching loads on and off, timing pumps, protecting batteries during load shedding — is a headache nobody needs. The TOMZN TOB9DC-63WIFI DC Smart Breaker, now available at eGalaxy.pk, is the answer.

This isn’t a repurposed AC smart switch. It is a dedicated DC Smart Breaker, built from the ground up for the unique challenges of direct current systems.

Why a Dedicated DC Smart Breaker Matters

Standard AC relays and smart switches fail — sometimes dangerously — when used in DC environments. DC current doesn’t pass through zero volts the way AC does, which creates serious arcing problems at the switch contacts. The TOMZN TOB9DC-63WIFI is rated specifically for DC 8V to 90V, giving it native compatibility with every common battery voltage used in Pakistan:

• 12V — Standard car and small solar batteries
• 24V — Mid-size solar systems and UPS banks
• 48V — Large off-grid and commercial solar setups
• 72V — High-voltage battery banks and EV applications

Using the right tool for the job means longer equipment life, safer operation, and no surprise failures.

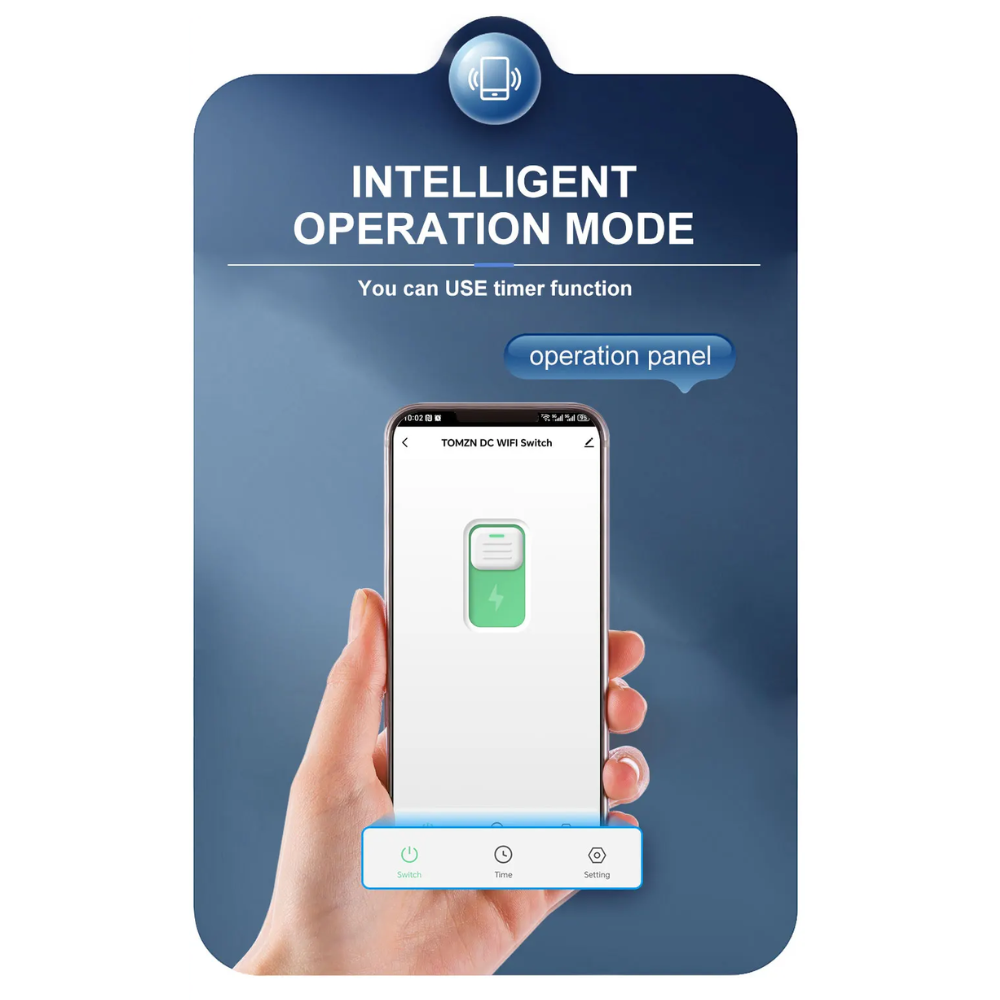

Set It, Schedule It, Forget It — Smart Timer Automation

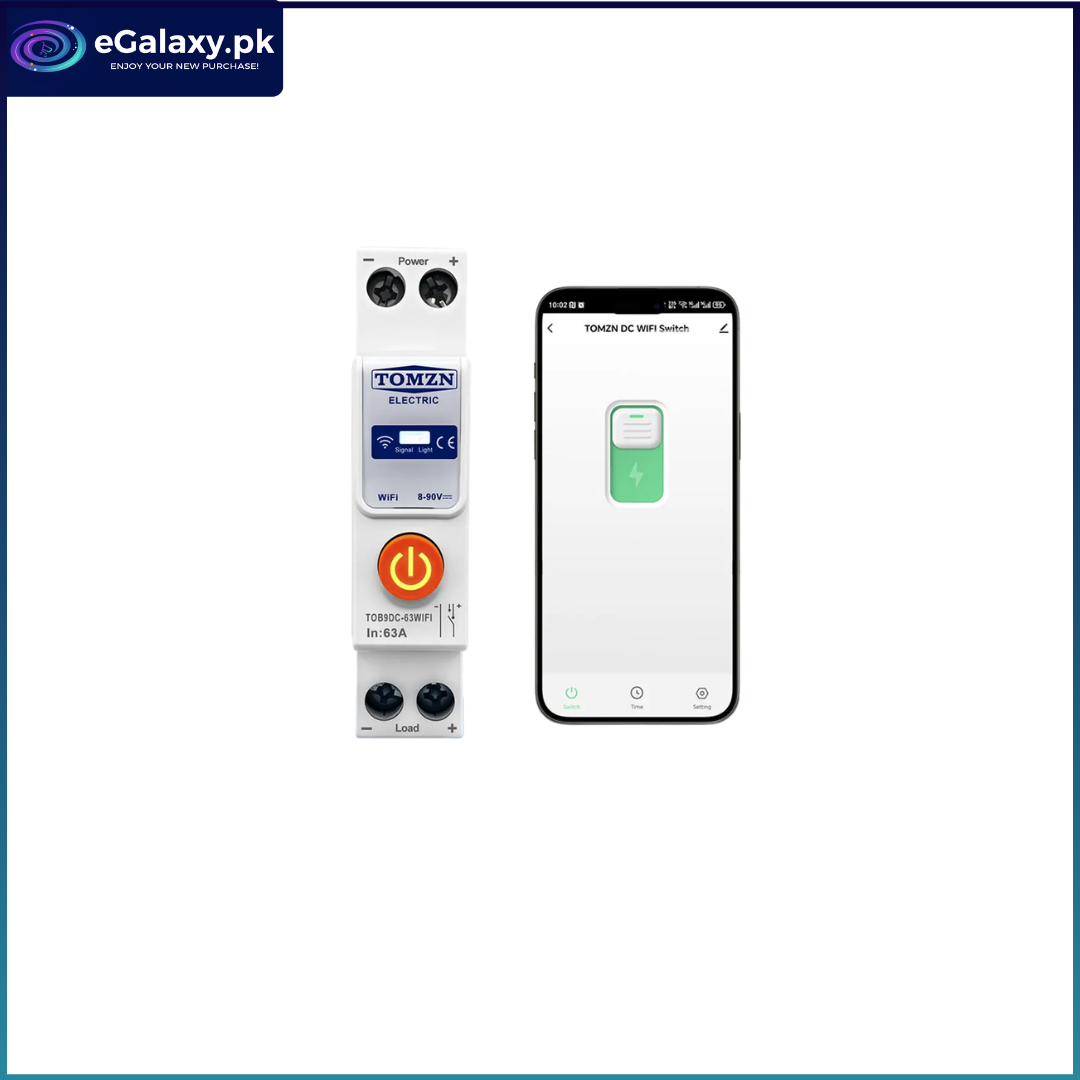

The TOMZN DC Smart Breaker connects to the globally trusted Tuya and Smart Life apps over a standard 2.4GHz Wi-Fi network. Setup takes just a few minutes — no proprietary hub, no extra hardware, no monthly fees.

Please Note: This DC Smart Breaker is designed for scheduling and automation, not live remote switching. You program your timers and schedules through the app, and the breaker executes them automatically — even when you are not around.

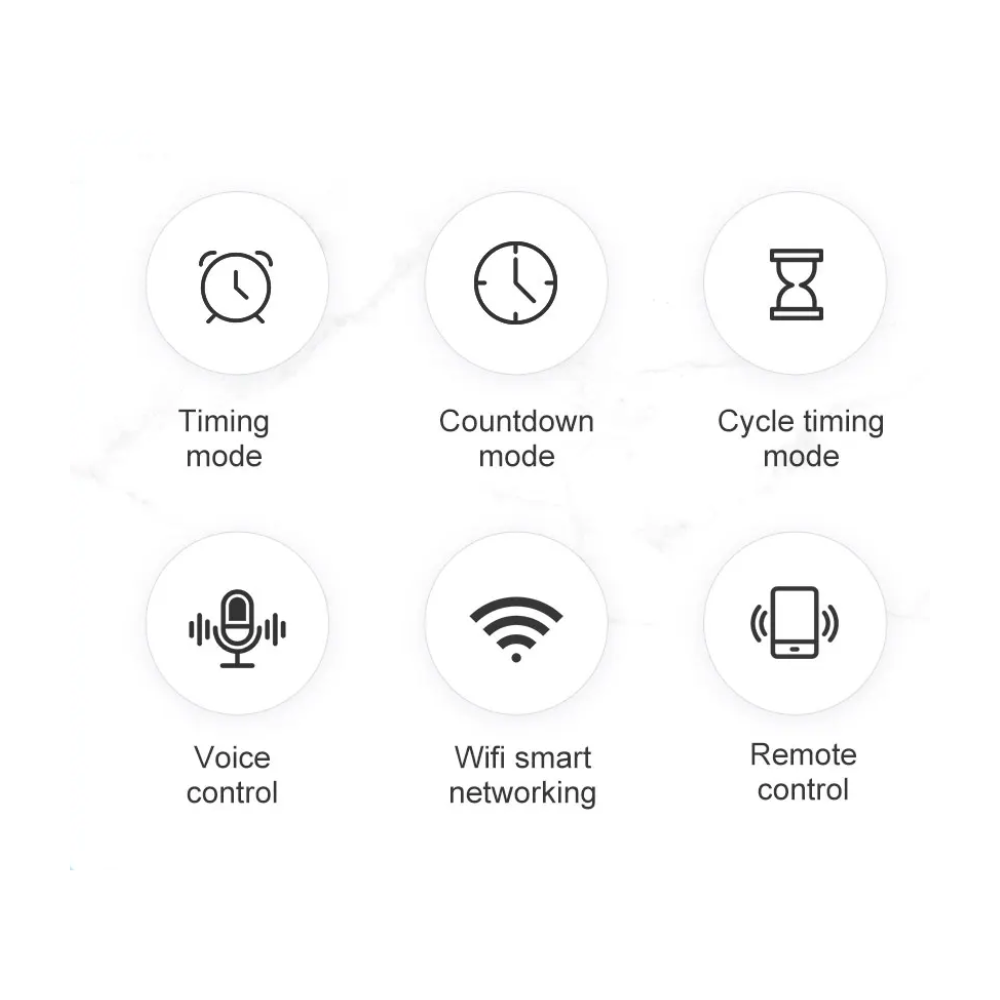

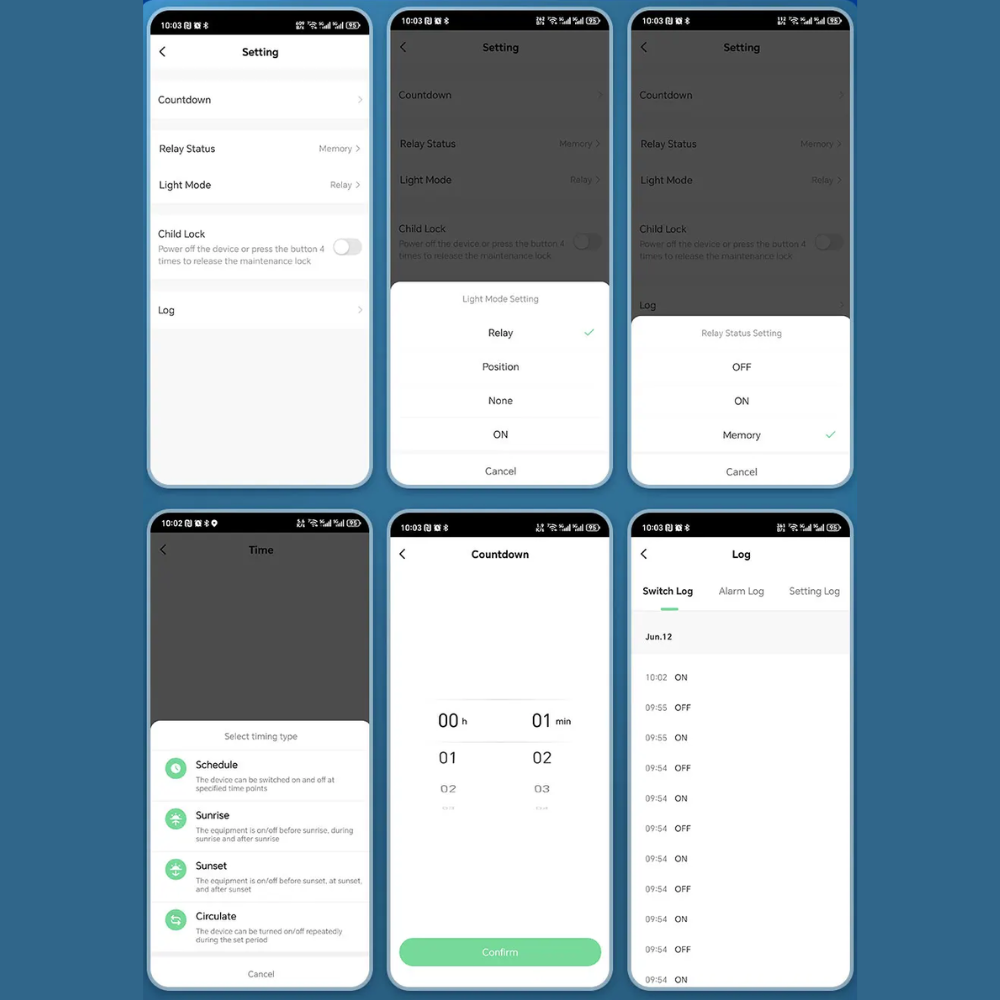

Once configured, the breaker supports three powerful automation modes:

1. Fixed Daily Schedule Set the breaker to switch On at a specific time each morning and Off in the evening — every day, automatically. Perfect for solar load management: disconnect non-essential DC loads at night to protect your battery bank from deep discharge.

2. Countdown Timer Running a DC pump, water filter, or ventilation fan for a set duration? Program a countdown — 20 minutes, 2 hours, whatever you need — and the breaker cuts power automatically when the time is up. No babysitting required.

3. Loop / Cycle Timer This is the standout feature for agriculture and industrial users. The loop timer lets you set a duty cycle: On for X minutes, Off for Y minutes, repeating indefinitely. Ideal for aeration pumps in fish farms, drip irrigation solenoids, cooling fans in solar inverter cabinets, or any DC load that needs regular cycling.

Built for Pakistan’s Load Shedding Reality — Relay Status Memory

If you have ever come back after a power cut to find your system in the wrong state, you will appreciate this feature immediately. The TOB9DC-63WIFI includes a customizable Relay Last Status function:

• Restore Last State: The breaker returns to its previous On or Off position the moment power is restored — no manual intervention needed. Critical for unattended solar charge setups.
• Default to Off on Restore: For sensitive equipment, you can set the breaker to always start in the Off position after a power cut, requiring a deliberate reset before re-energizing the circuit.

In a country where load shedding can strike multiple times a day, this feature is not a luxury — it is essential.

Compact, Tough, and DIN Rail Ready

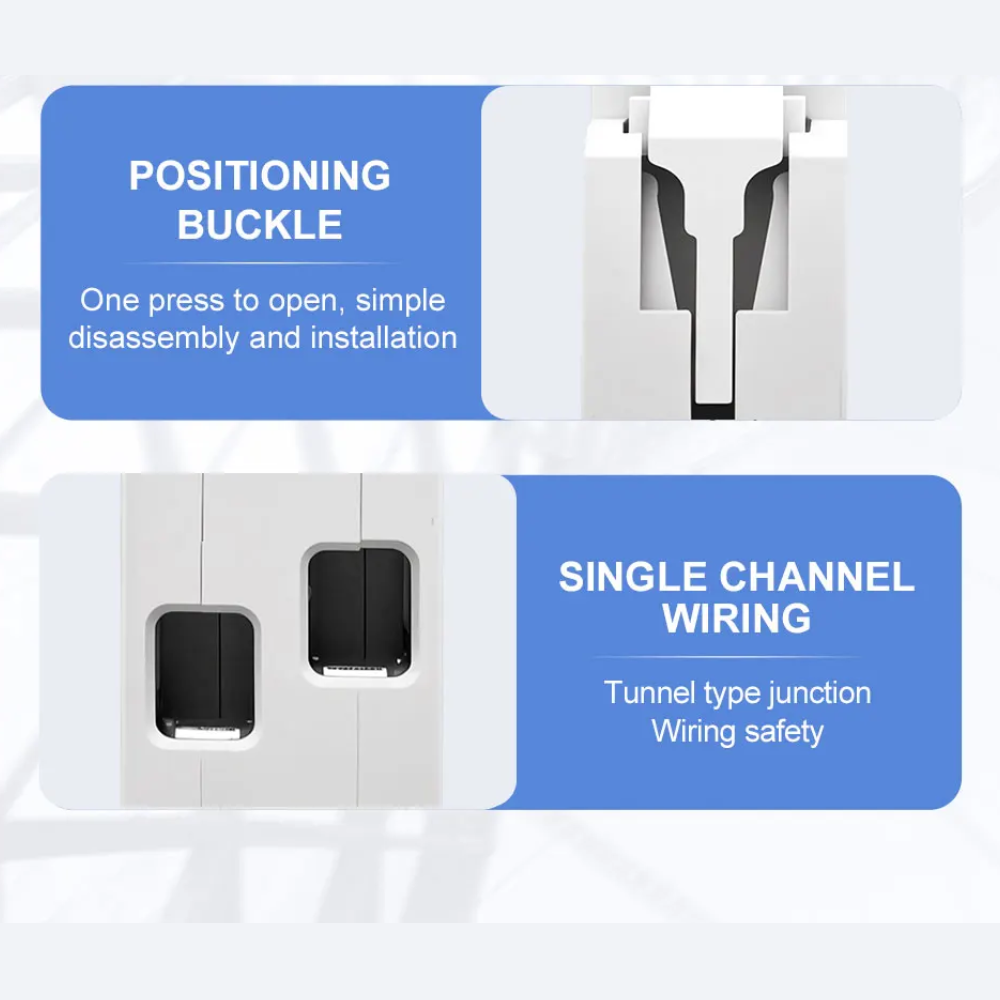

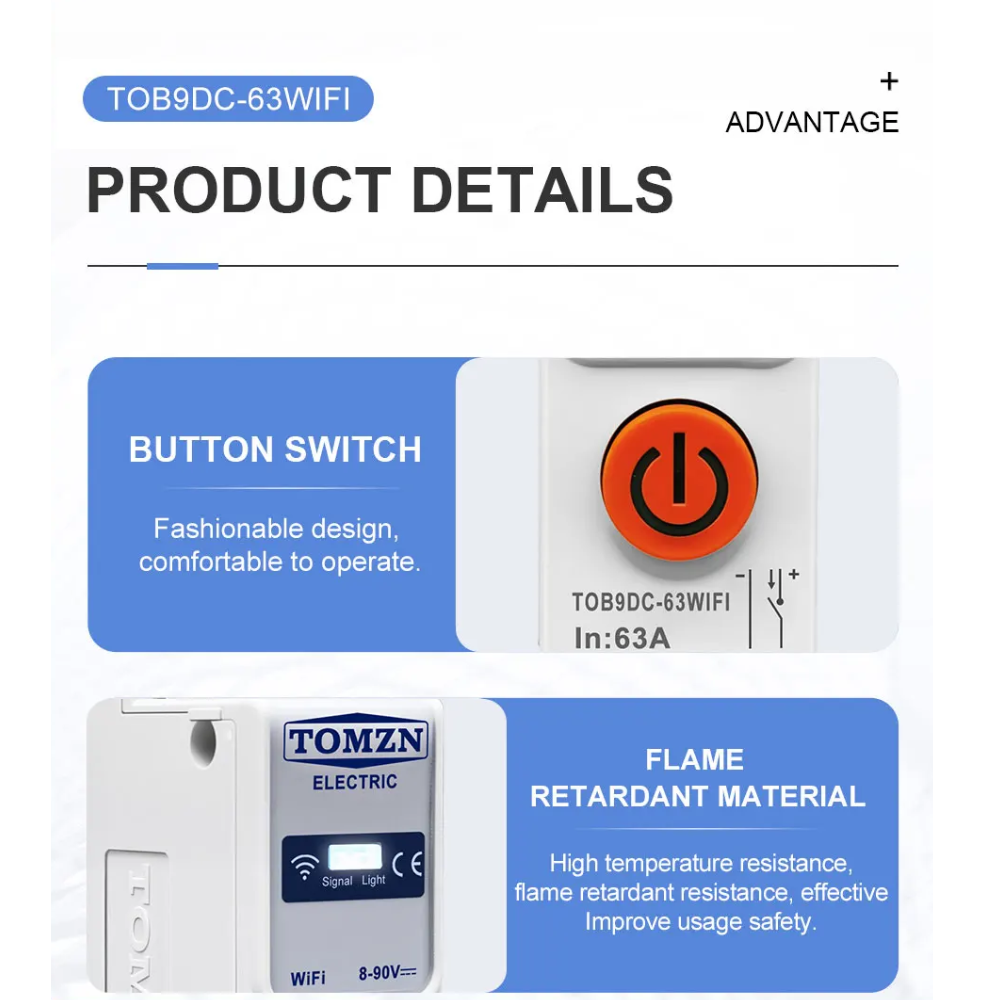

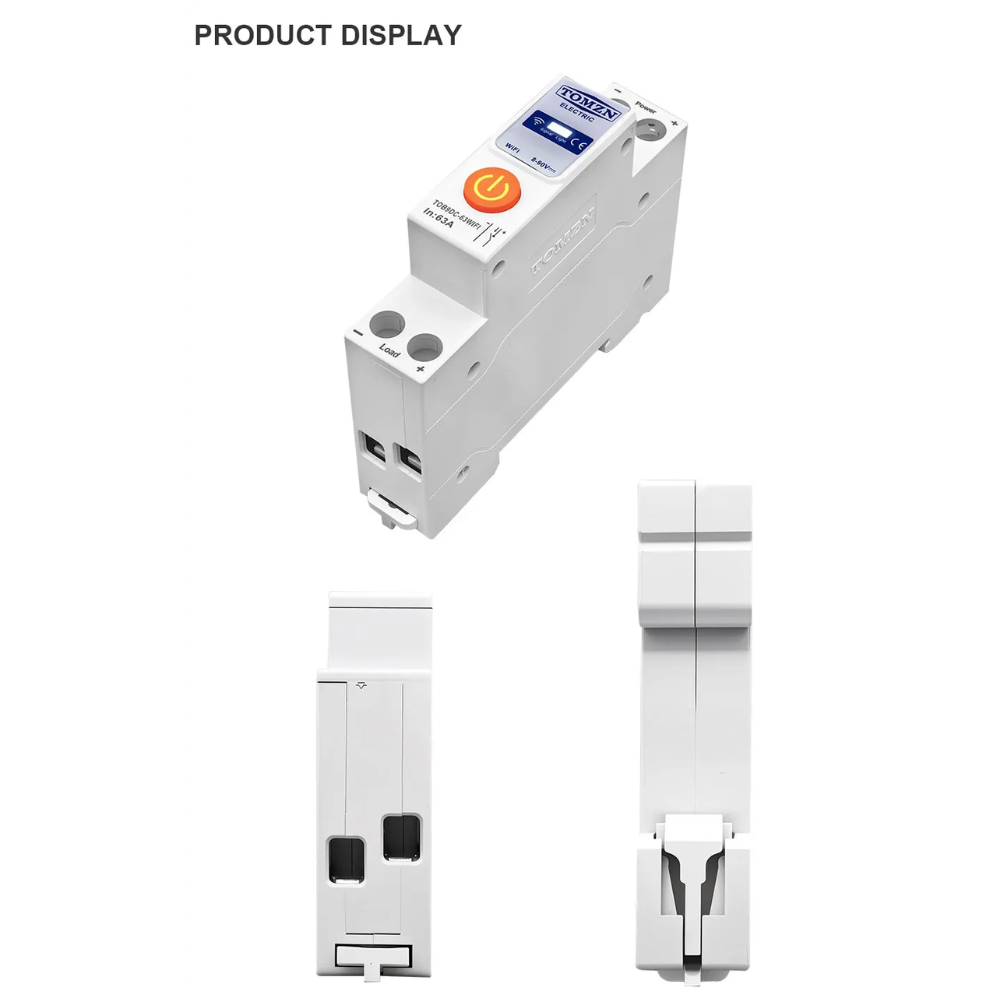

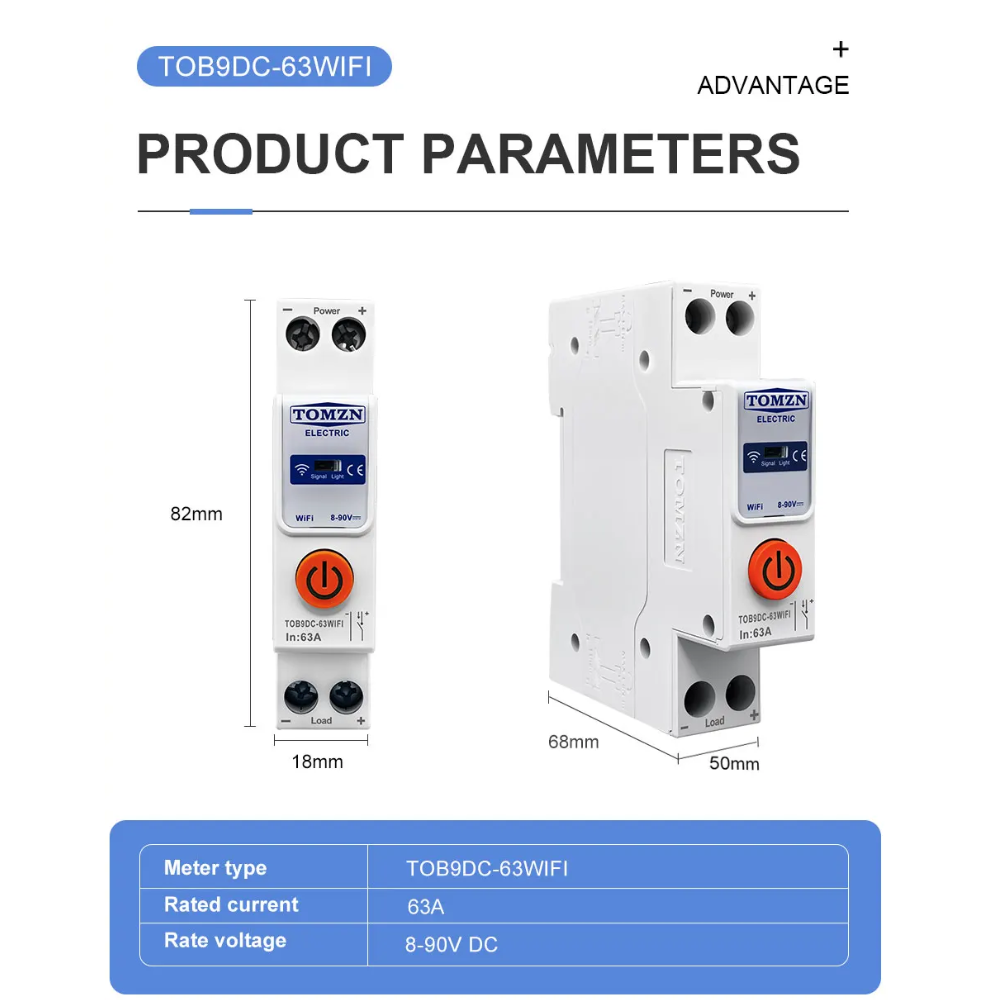

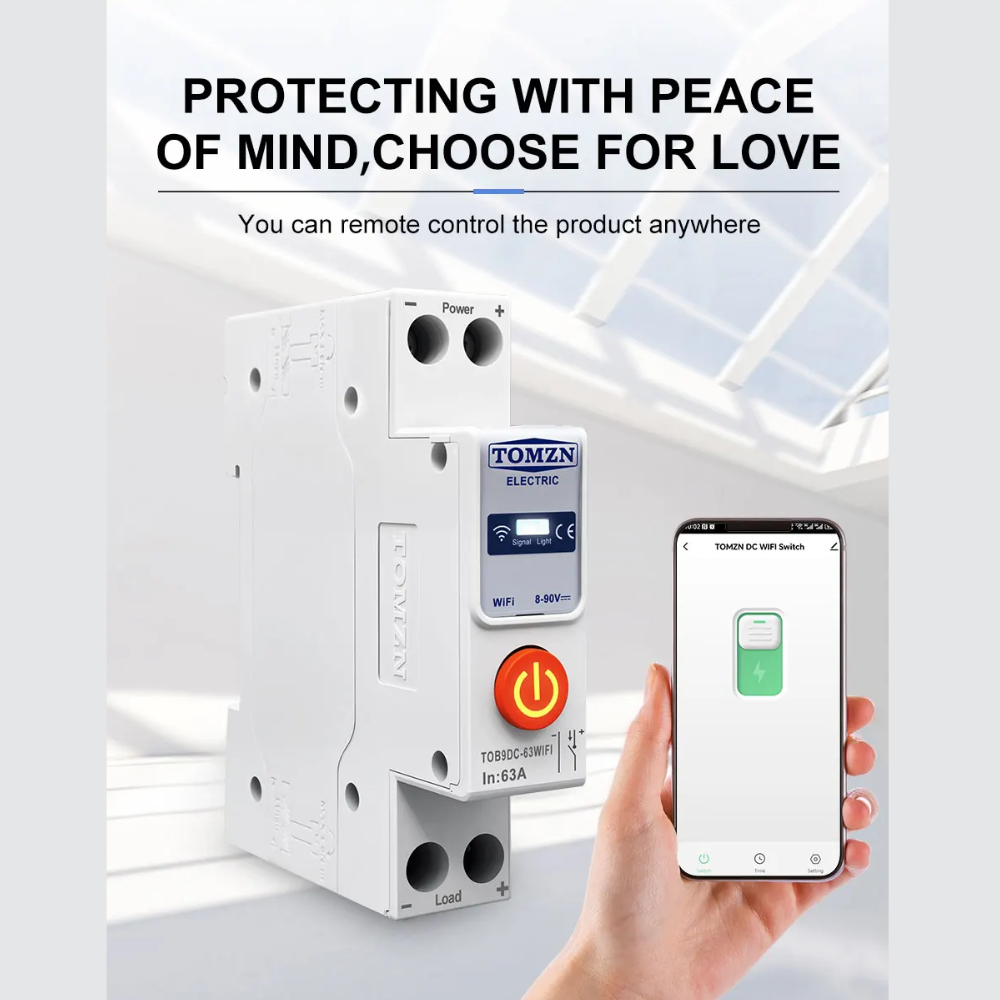

The TOB9DC-63WIFI is a 1P (Single Pole) DIN rail device that fits directly into your existing distribution box or control panel. Its compact design hides serious specs:

• Rated Current: 63A
• Voltage Range: DC 8V – 90V
• Mechanical Life: 100,000+ operations
• Operating Temperature: -25°C to +70°C
• Connectivity: 2.4GHz Wi-Fi (Tuya / Smart Life)

Whether your control box is in a rooftop solar enclosure baking in Lahore’s summer heat or a basement battery room in winter, this DC Smart Breaker keeps performing without complaint.

Honest Specs — No Hidden Surprises

At eGalaxy.pk, we believe in full transparency. This model is optimized for switching and scheduling — it does not include live energy monitoring, voltage/current metering, or over-voltage protection. If you need those features, check our other smart breakers in the Home Automation category. The TOMZN TOB9DC-63WIFI’s job is to be an exceptionally reliable, schedule-driven DC switch — and it does that job excellently.

Who Needs This DC Smart Breaker in Pakistan?

• Solar System Owners — Automate DC load shedding to protect battery life overnight or during cloudy periods
• Agriculture & Farming — Cycle drip irrigation or aeration pumps on precise timer schedules
• RV & Vehicle Owners — Schedule cabin lighting, water pumps, or ventilation fans automatically
• Industrial & Workshop Users — Run DC motors, test equipment, or prototype rigs on timed duty cycles

Shop with Confidence at eGalaxy.pk

Every product at eGalaxy.pk is backed by our 7-Day Replacement Policy, Cash on Delivery option, and nationwide delivery across Pakistan. We are based in Lahore and proud to serve customers from Karachi to Peshawar with genuine tech products at honest prices.

The TOMZN 63A DC Smart Breaker is the smart, reliable, and modern way to manage your 8–90V DC circuits — without the complexity or cost of traditional manual switching.
