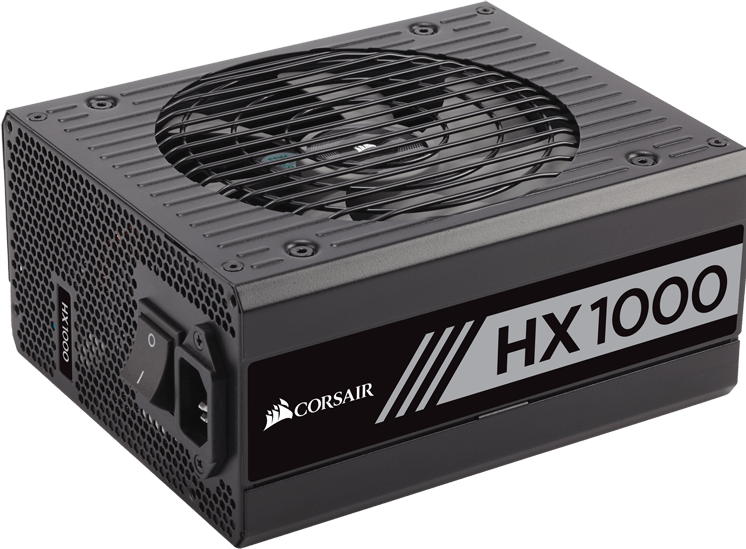

Corsair – HX Platinum 1000W 80+ Platinum Certified Fully-Modular ATX Power Supply
CORSAIR HX 1000W POWER SUPPLY
This HX Series power supply from Corsair has a total power output of 1000W, other advantages to the HX1000 are the fully modular cable setup which gives you extremely tight voltage control virtually silent operation.
The 80PLUS Platinum efficiency rating and Zero RPM Fan Mode mean that at low to medium loads, the fan doesn’t spin at all. And when you do push the HXi hard.
Fully Modular Connectivity

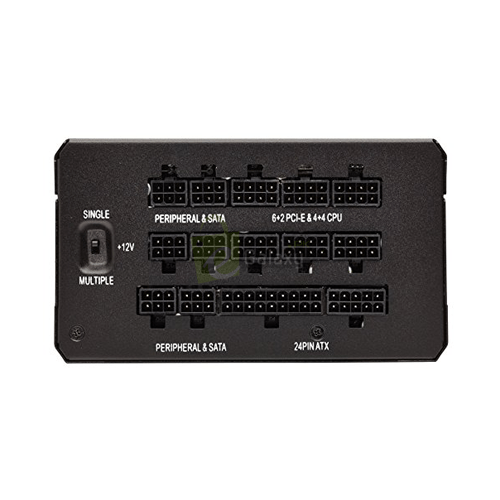

HX FULLY MODULAR CABLE DESIGN
The easy to install, fully modular setup on the Corsair HX1000 allows you to combine the low-profile cables provided for a great-looking build.
You can toggle the rail modes using the switch on the PSU, In the SINGLE position
HX1000 Efficiency & Noise Graphs

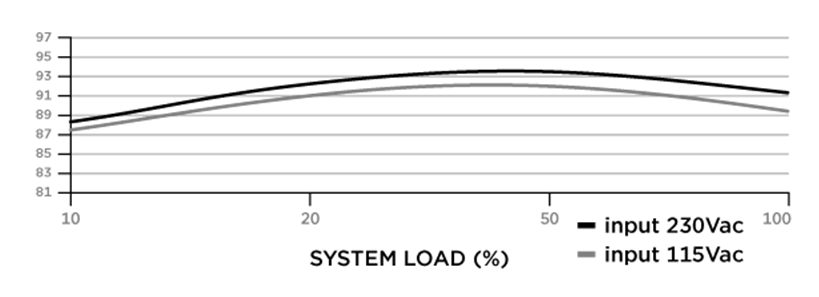

HX1000 EFFICIENCY

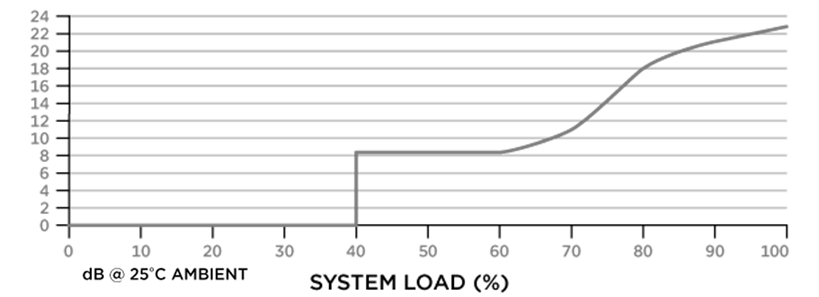

HX1000 FAN NOISE
Corsair HX1000 Output Power Chart
| CORSAIR HX1000 DC OUTPUT – SINGLE +12V RAIL MODE | |||||
|---|---|---|---|---|---|
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Load | 25A | 25A | 83.3A | 0.8A | 3A |
| Maximum Combined Wattage | 150W | 1000W | 9.6W | 15W | |
| Total Power: 1000W | |||||
| CORSAIR HX1000 DC OUTPUT – MULTIPLE +12V RAIL MODE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC Output | +3.3V | +5V | +12V1 | +12V2 | -12V3 | +12V4 | +12V5 | +12V6 | +12V7 | +12V8 | +12V | +5VSB |
| Max Load | 25A | 25A | 40A | 40A | 40A | 40A | 40A | 40A | 40A | 40A | 0.8A | 3A |
| Maximum Combined | 150W | 1000W | 9.6W | 15W | ||||||||
| Total Power: 1000W | ||||||||||||
Corsair HX1000 Key Features
80 PLUS PLATINUM CERTIFIEDPlatinum certification ensures high efficiency for less excess heat & lower operating costs.
JAPANESE 105°C CAPACITORSPremium internal components ensure solid power delivery and long term reliability.
ZERO RPM FAN MODEFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.
TEN YEAR WARRANTYYour guarantee of reliable operation that will last across several system builds.
